Basic Construction and Theory of Operation

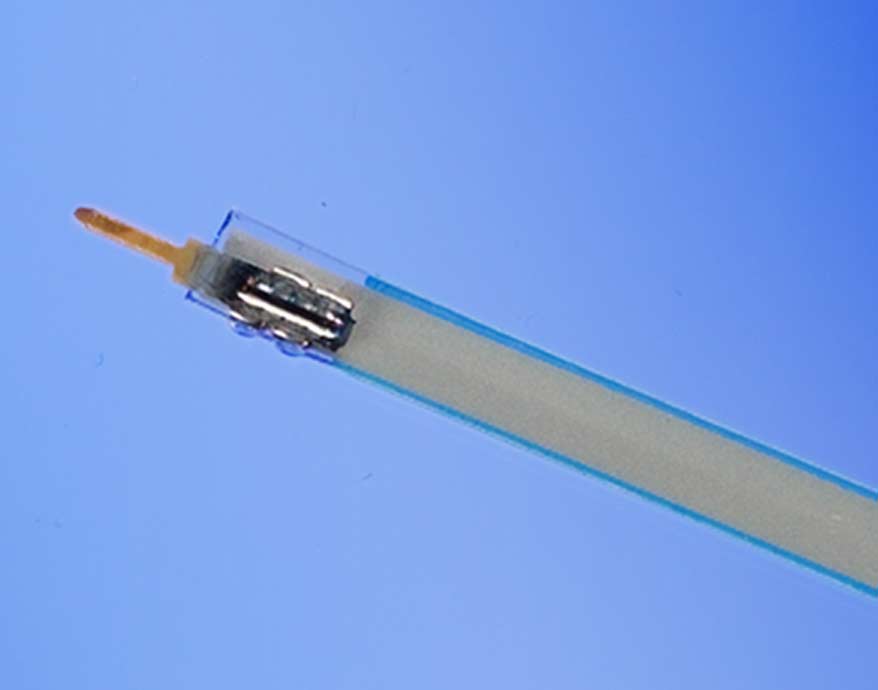

TPI’s CrystalHeat® transparent heaters are constructed of a layer of electrically conductive transparent film with screen-printed parallel busbars positioned along the edges. Lead wires are then attached to the busbars to provide means of electrical connection. Applying voltage to the busbars, through the lead wires, creates a uniform heating surface. Maximum wattage of up to 1.0 watt/in2 is recommended for most applications. (Wattage is a function of input voltage, surface resistivity and heater geometry.) These heaters can be provided with optical grade adhesive, laminated on the back, for easy mounting in front or behind an LCD display. TPI’s CrystalHeat® transparent heaters are designed for use with LCD displays in military and commercial applications under harsh environmental conditions. CrystalHeat® prevents freezing of liquid crystals in cold environments, hence making LCDs readable in temperatures well below the freezing point.
